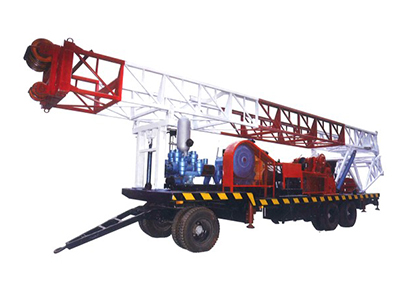

SPT-600鉆機為全拖懸掛式，整體運輸方便。 機械傳動，轉盤回轉，傳動平穩；鉆機采用雙卷 揚結構，塔頭平移可使副卷?yè)P(yáng)中心自動對中，接 卸鉆桿方便快捷。鉆塔整體液壓起降，鉆機整體 液壓支腿調平，孔口板液壓開合，省力便捷；增 加機械副支腿使鉆機更加安全、穩固。鉆機最低 轉速可至21r/min,適合空氣潛孔錘鉆進。
主要用于工農業水井鉆鑿、水文地質勘查和 橋樁工程孔等。
SPT-600 drilling rig is trailer-type drilling rig and eady to transport.it is mechanical transmission and its rotary table rotate back and teansmit eery smooth.This rig adopts double winch structure and its tower head translation can make the auxuliary winch alignment automatically to the center.it is concenient to install and uninstall the drill rod The whole derrick is hydraulic landing, the whole rig hydraulic support leg adjust level and the plate is hydraulic open and close which is convenient： It also add equipment more safe and stable. The minimum revolution speed of this drilling machine can be up to 21r/min and it is suitable for air DTH hammer drilling.
Mainly used in industrial and agricultural water well drilling, hydrological geological exploration and pile construction.
主要技術參數 Technical Specifications
| 鉆孔深度 Drilling Depth(m) | 600 |
|
轉盤通徑
Opening Diameter of Rotary Table(mm)
|
530 |
|
轉盤轉速
RPM of Rotary Table ( r/min)
|
正反21、41、80、139 |
|
主副卷場提升能力
Hoist Capocrty of Master And Auxiiary WhtfXD
|
6 |
| 主動鉆桿 Kely (mm) | 口108x108x10500 |
| 孔內鉆桿 Dril Rpe ( mm ) | φ89x8750 |
| 據桿結構形式 Mast Structured | ∩ |
|
有效高度
Ettectrve Height ( m )
|
14 |
|
水龍頭負栽能力
Loading Capacity of Power Swrvel (t)
|
36 |
|
游動滑車負敏能力
Loading Capacity of Traceing Block (t)
|
36 |
| 鉆機動力 Power ( kw) | 75 |
|
泥漿泵型號
Mud Pump Mod」
|
BW850/5 |
|
泥菜泵動力
Mud Pump Power ( kw )
|
75 |
| 整機重量Weight （t） | 16 |
| 外形尺寸Dimension ( m ) | (運輸狀態)12.5x2.5x3.7 |
| (工作狀態)10x2.5x15.7 |
